Specification

Color: Black, Silver
Material: Aluminium Alloy
Shape: Round
Style: Modern
Meter Type: Color Screen LCD
Power Type: Lead-acid or Lithium Battery (Not Included)
Installation Position: Front
Bike Type: Electric Bike
Motor Type: Brushless and Gear Motor
Braking Method: Disc Type/V-type Brake
Corresponding Controller: 36V 500W FOC Sine Wave Intelligent Controller
Instrument Display: Real-time Speed, Maximum Speed, Average Speed, Total Mileage, Single Mileage, Battery Power Display, Assist Gear/Speed Grading, Cruise Function, Error Code Display
Voltage: 36V
Power: 500W
Rated Speed: 300rpm
Rated Torque: 55nm
Efficiency: ≥82%
Motor Wheel Speed: Max 35-40km/h
Net Weight: 8kg/17lbs
Gross Weight: 9kg/19lbs
Package Size: 60*60*22cm/23*23*8inch
Controller Size: 212*115*55mm/8.3*4.5*2inch
LCD Meter Size: 68*96mm/2.6*3.7inch
Wheel Diameter: 27.5inch/69.8cm
Suitable Handle Diameter: 22.2mm/0.87in

Key Features

Fast Speed: The speed can be up to 40km/h, which is very fast and can give you a good riding experience.

LCD Display: The LCD meter with a color screen can display the real-time speed, maximum speed, average speed, total mileage, single mileage, battery power, assist gear/speed grading, cruise control, and error code, allowing you to grasp the usage status of the product. Meanwhile, the backlight enables you to see the screen clearly in a dim environment.

Excellent Performance: The high efficiency (82%) can save you a lot of electricity. Moreover, the brushless gear motor produces low noise when used, which can create a quiet environment for you.

Safe and Reliable: The powerful FOC sine wave controller is conducive to ensuring the smooth operation of other parts, making your entire process safer and easier. Besides, the power-off brake handle can cut off the motor power in case of emergency braking so that the bike can stop in time and reduce potential safety hazards.

Premium Material: Made of high-quality aluminum alloy, it can resist wear, corrosion, and deformation.

Labor-saving: You don't have to pedal your bike laboriously anymore with this product and only need to gently rotate the turner to control the speed flexibly, which is very labor-saving and convenient. The adjustable five gears can bring you an unprecedented riding experience.

Easy to Install: The simple structure and complete accessories allow you to install it in a few simple steps, which is very simple and convenient.

Details

Pedal Assistant Sensor: It senses the rhythm of the pedal and adjusts the speed of the motor accordingly. This helps on long trips and avoids wrist pain caused by constant pressure.

Controller Bag: This can be convenient to store the controller. It is also very good-looking and stylish.

Meter Bracket: You can put the LCD meter on the bracket for easy storage and viewing of the display on the meter. It fits for the handle with a diameter of 0.87inch.

How to Measure a Bicycle Wheel Size

Method 1: If your tire is mounted, you can find the wheel size on the bicycle's tire.
Method 2: Measure the distance in inches from the ground beneath the tire to the center point of the wheel. This measurement is the wheel's radius or half of its diameter. Multiply the length by two to calculate the tire's diameter. Most adult bicycle wheels are between 26 and 29 inches in diameter.

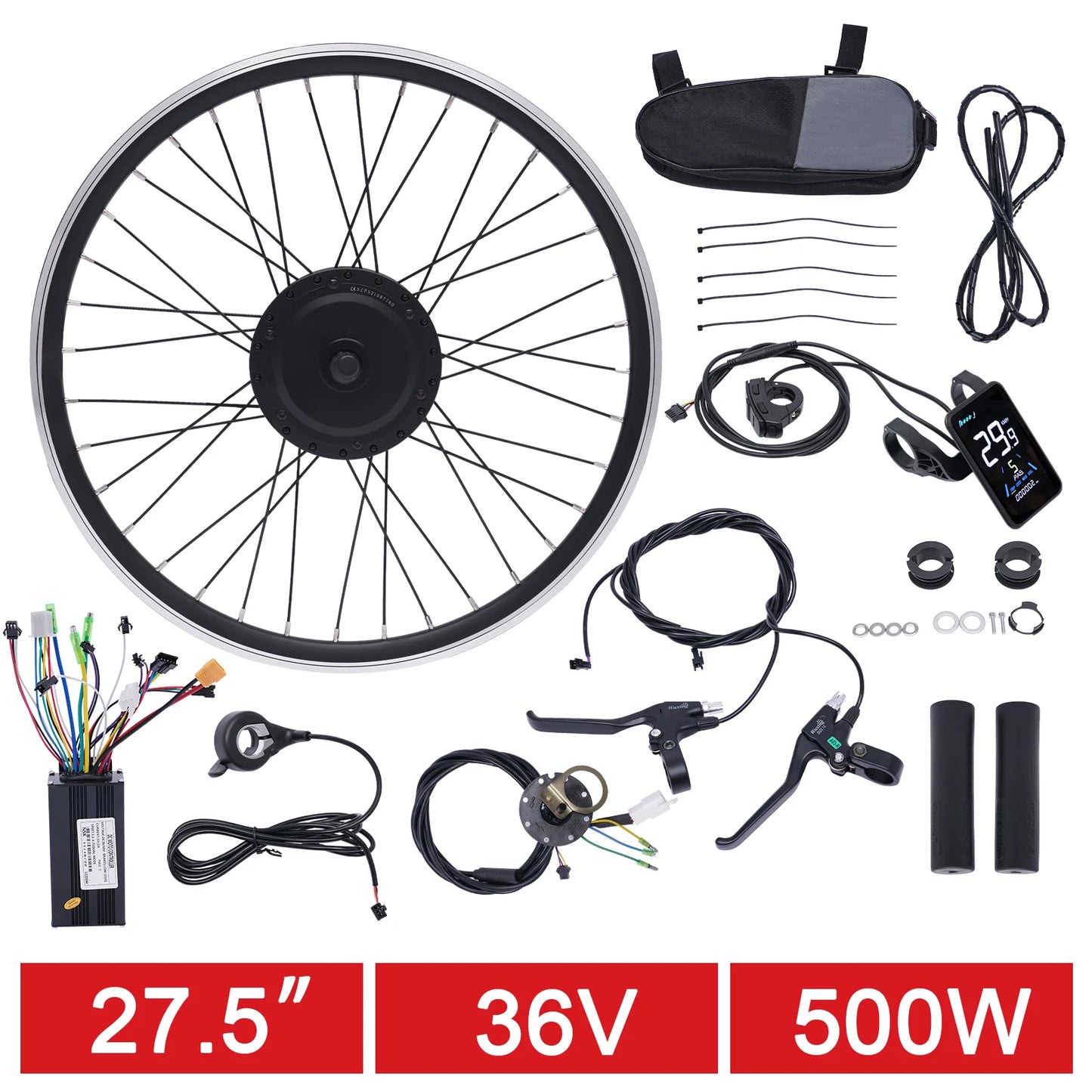

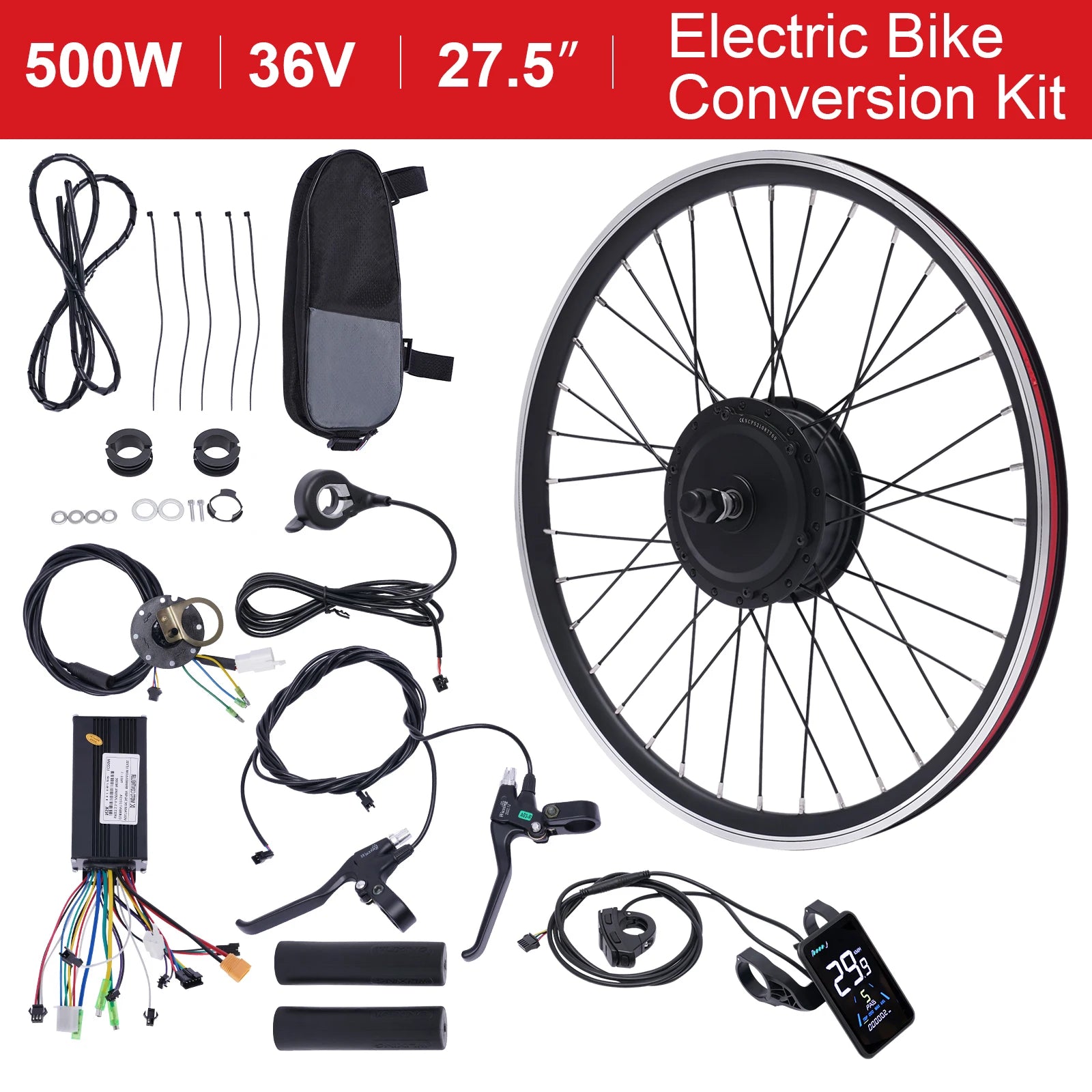

Package Included

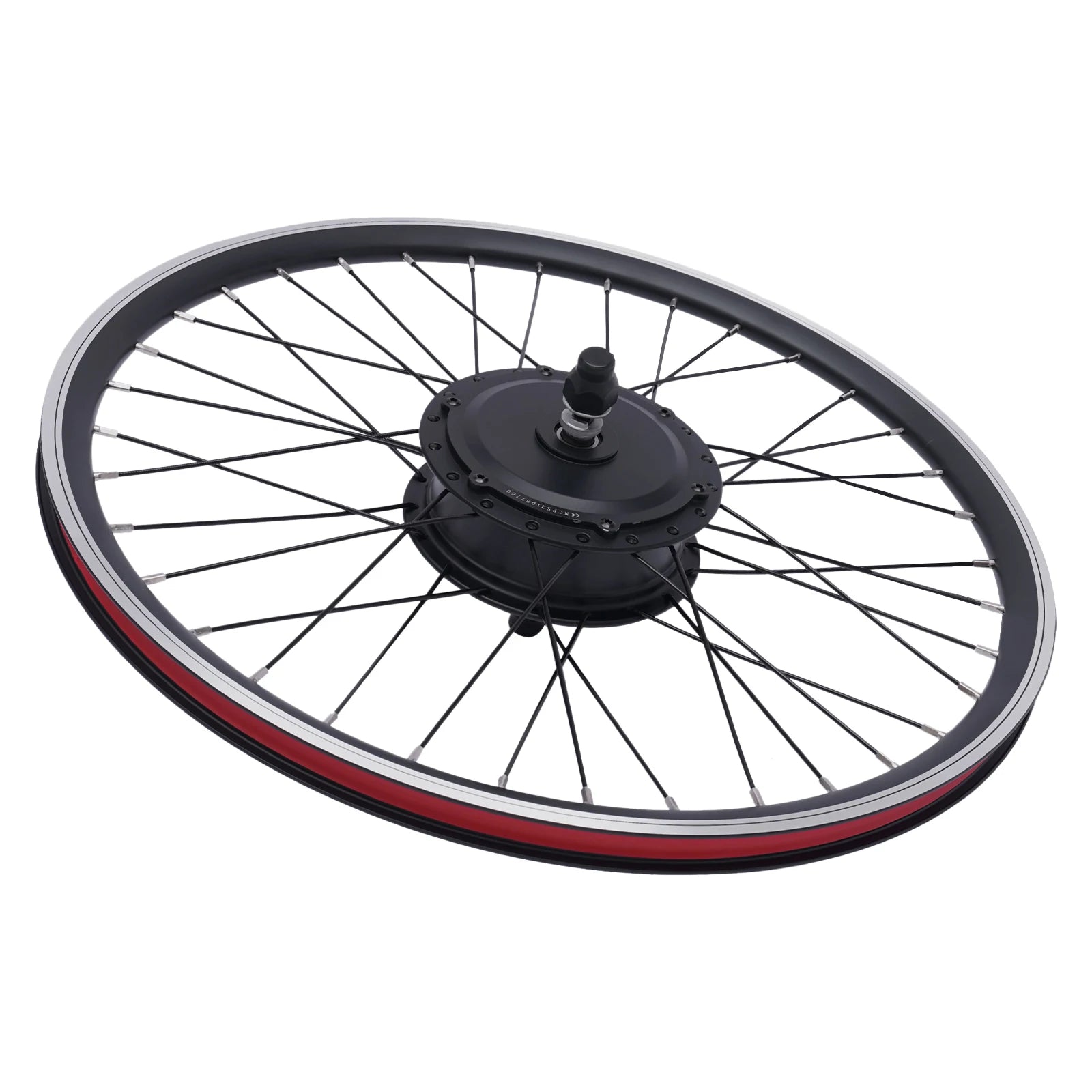

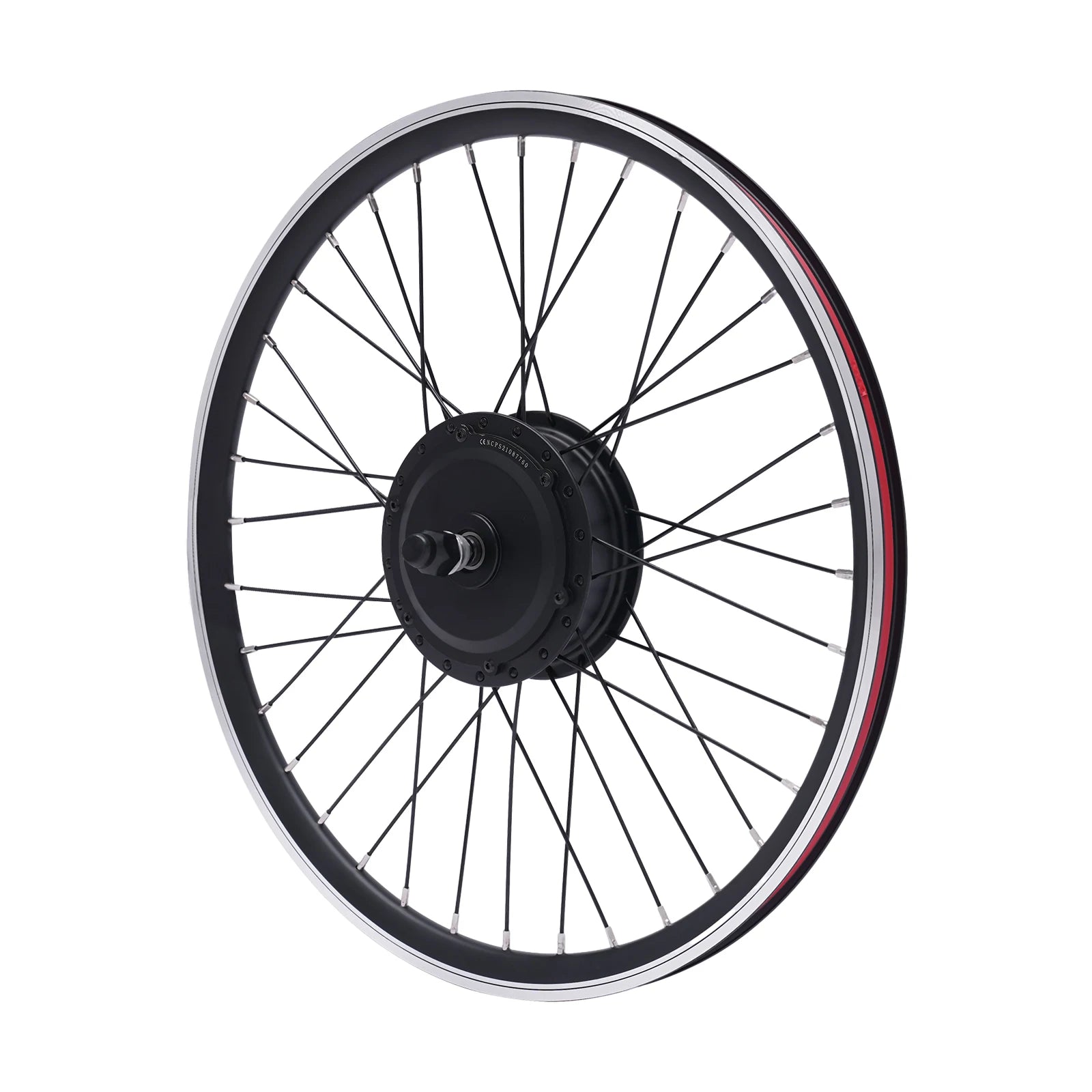

1* Front Drive Motor Wheel
1* Turner
1* Turnbuckle Cover
1* Controller
1* Color Screen LCD Meter&Bracket
2* Brake Handles
1 Set* Pedal Assistant Sensors
1* Controller Bag
1* English Manual
Other Accessories for Assembly

Notes

1.The speed is related to wheel size, road condition, battery condition, guest load, wind Speed, and other factors.
2.It is suitable for the front wheel of a two-wheeled bike or tricycle with the front fork claw hook inside distance of 3.9inch.
3.Please prepare lead-acid battery or lithium battery with a power of 500W in advance. Please note that the battery and tire are not included in the package.
4.Please make sure a solid connection between the motor and the controller.
5.Please make sure that the inner core of each plug is not damaged, broken, or bent.
6.If your kit has been used for a while, and then suddenly stops working, first check whether the battery has power, then check whether the wiring of the controller is loose, disconnected, or melted, and finally check whether the instrument works normally and whether there is an error code display.
7.You need to connect the machine correctly and firmly during installation so that the product can work properly. If there is a mistake during the installation process, the product will not work properly.
8.Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.
9.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
