SPECIFICATIONS

Adjustment: moa

Brand Name: NONE

Exit pupil: 8~2.7

Eyepiece Lens: 30mm

Field View: 42'-14'

Field of View AT 1000 M: 300m

Focal Plane: First Focal Plane

Function: Lens

Lens coating: Fmc

Magnfication: 4x-12x

Magnification: ＞6

Model Number: 4-12x42

Type: RIFLE

W/E adjust click value@100yds: ±30M.O.A

Waterproof: ipx6

illumination: Yes

SVD 4-12x42 FFP Sniper Scope Data & Compatible Firearms

Technical Specifications:

• Magnification: 4x to 12x
  Provides adjustable magnification, suitable for a wide range of shooting distances, from medium to long-range precision shooting.

• Objective Lens Diameter: 42mm
  The large diameter lens provides brighter views and better performance in low-light conditions.

• Field of View (@100 yards): 42' to 14'
  As the magnification increases, the field of view decreases, making it easier to precisely lock onto distant targets.

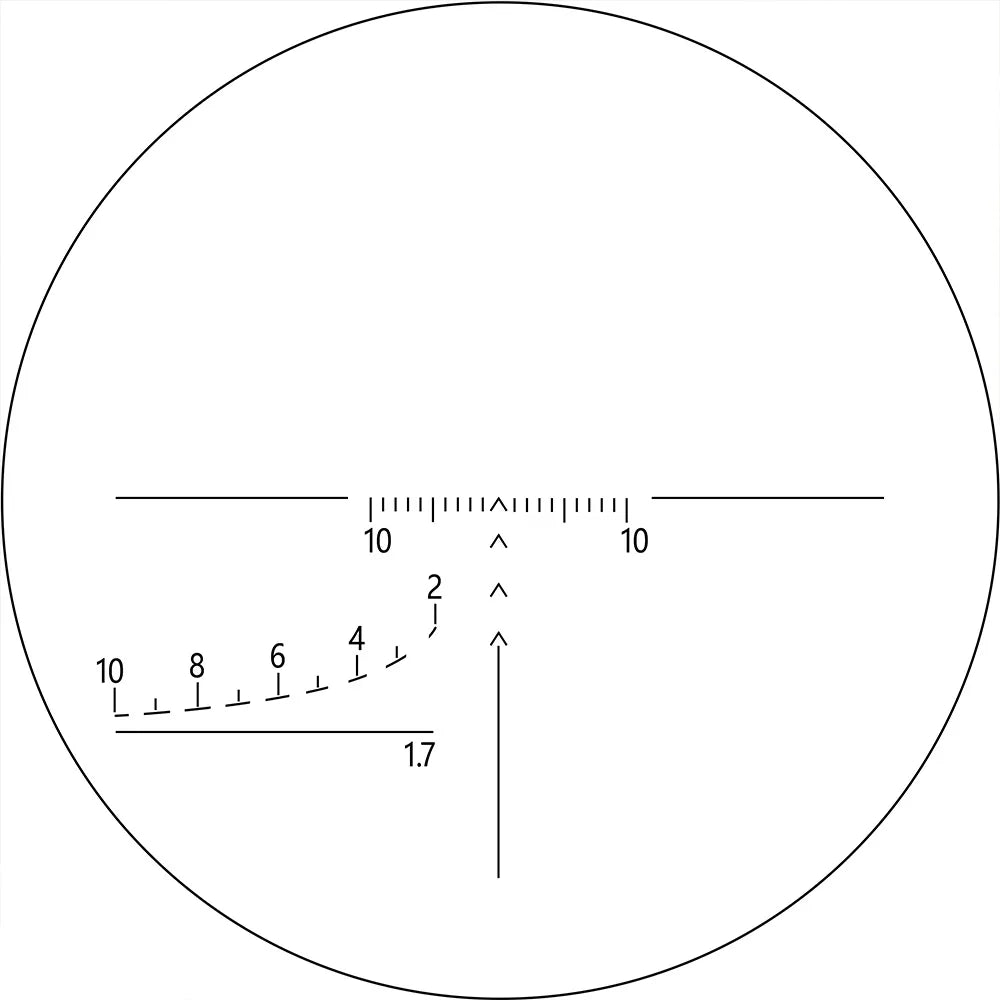

• Reticle Adjustments:

  • Diopter Adjustment Range: -0.75D

  • Windage/Elevation Adjustments: ±30 MOA (at 100 yards), enabling precise shooting adjustments.

• Illumination: Red
  Built-in red illumination for the reticle, enhancing visibility in low-light conditions.

• Exit Pupil: 8mm to 2.7mm
  Provides a comfortable eye relief distance, reducing eye strain during prolonged use.

• Weight: 22 oz (approx. 623g)
  A lightweight design, making it suitable for extended use without significantly affecting the firearm's balance.

• Length: 13 inches (approx. 33 cm)
  A compact design that is easy to handle and use in various shooting environments.

• Waterproof: Yes
  The scope is waterproof, ensuring reliable performance in harsh weather conditions.

• Battery: CR2032 (not included)
  Uses a standard CR2032 battery to power the reticle illumination for extended periods.

• Parallax Setting: 100 yards
  The scope is parallax-free at 100 yards, providing a sharp focus for precise long-range shooting.

The scope mount rail must first be installed on the left side of the firearm.

PP-19“Bizon”／PP-19-01“Vityaz”
Saiga／Saiga-12/Saiga-20/Saiga-410
AK-47／AKS-47／AKM／AKMS／AKMSU／RPK
AK-74／AKS-74／AKS-74U／AK-74M／RPK-74
AK-101／AK-102／AK-103／AK-104／AK-105／AK-9
AK-107/AK-108/AK-109
AN-94“Abakan”
AEK-971/AEK-972/AEK-973
Vepr
AS“Val”／VSS“Vintorez”／SR-3/SR-3M/SR-3MP“Vikhr”
9A-91／VSK-94
OTs-12“Tiss”
OTs-14“Groza”
ASM-DT
SV/SVDS／SVDK／SVU/SVU-A/SVU-AS
V-94/OSV-96
SVN-98/KSVK 12.7
RPK-201／RPK-203
PK/PKM／Pecheneg／AEK-999“Barsuk”
Kord 12.7
